The tongue and groove joint is one of the simplest wood joints that is used to create square joints as well as flat panels.
What Is a Tongue and Groove Joint?
A tongue and groove joinery attaches two timber pieces at the edges to create a wider panel. One side uses a slot that runs down the wood’s length, while the other uses an extension to fit into that area.
This combination creates a robust and clean joint that works well for wood paneling, strip flooring, tables, and other flat-surface applications.
Generally, you can find two types of tongue and groove joints. They are,
- Solid tongue and groove joinery
- Slip tongue and groove or tongue-in-groove
Two different woodworking joints sound very similar, and some people use them interchangeably. You can create a tongue and groove joint or a tongue-in-groove joint for flat surfaces.
What is the difference between the two? When you have a tongue-in-groove joint, a loose piece called spline fits between two identical boards. This means you only need to cut grooves on both pieces and the extra piece acts as the tongue.
The above figure illustrates the assembly method of spline which is also known as a slip tongue. This type of wood joinery is used primarily to attach two flat wooden boards to make a wider panel.
A regular T & G joint doesn’t require the extra piece to create a seamless, flat surface. You can use the hard tongue to build strong square joints and corners.
What Are the Uses of a Tongue and Groove Joint?
This joinery technique is mainly used for applications such as,
- Edge-to-Edge joints to create wide panels
- Plywood and Hardwood Flooring
- Edging in shelving, cabinet and furniture sides
- Wall paneling
- Ceilings
Wood flooring is the most common place where you’ll see this type of wood joint. Each groove board or plank “locks” into the opposite edge of the next grooved piece to form a durable, flat surface that floats above the subfloor.
Some wood siding products use this design to create a protective barrier for houses or other structures.
You can also find the joint used in furniture making, especially when creating high-end products. Benches, tables, and chairs benefit from the added strength the technique offers. The joinery method provides a strong joint between plywood, featherboard, cedar, and other higher-quality boards for wood paneling.
Your wooden workbench most probably use this joinery. Usually smaller wooden pieces are assembled together by this joining method, glued and then finished with a hand plane and sander. For carpentry work, you may also want to use of one the waterproofing methods and finish it with varnish or lacquer.
How Is a Tongue and Groove Joinery Made?
Woodworkers must cut a groove along one side of the board to produce a thin, deep ridge. On the other side of the board, the tongue is a small, centered extension that fits into the corresponding groove on another piece.
Except for an end piece, all boards using a T & G joint have both components cut into the edge.

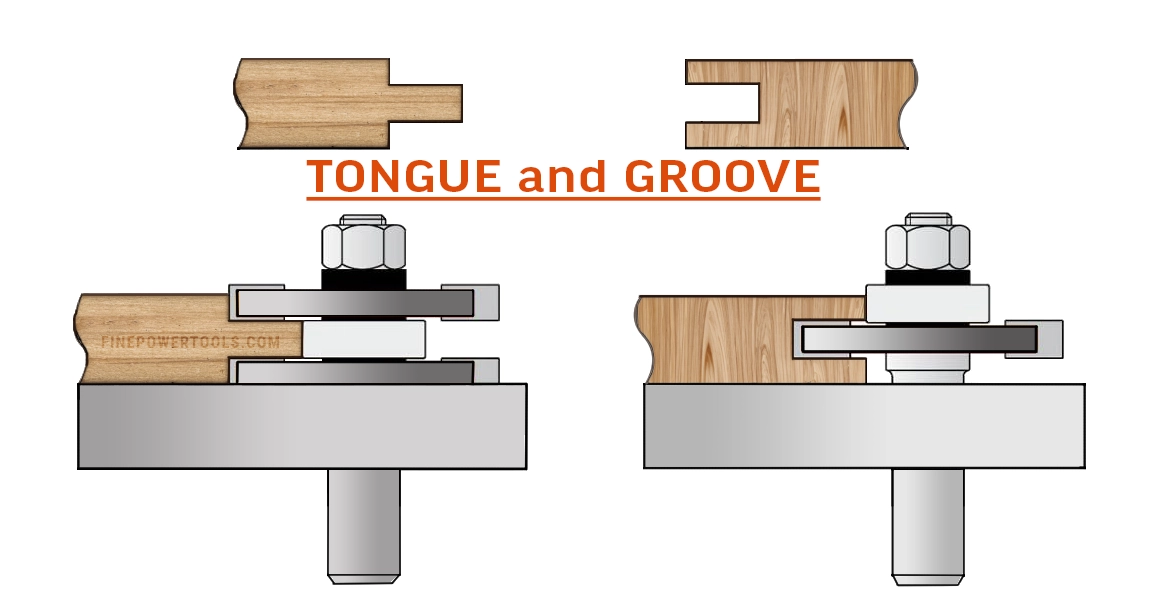

A router or table saw is necessary to craft the groove accurately. You can get router bit sets with 2 types of cutters to mill the groove as well as the tongue on the adjoining boards.
A dado blade on a table saw of an appropriate thickness provides a quick way to create this half of the joint. Both methods work fine, but a router table makes things easier for you.
Please note the use of a dado blade on the table saw is not be allowed in some countries in Europe and UK due to safety reasons. You have to remove the blade guard to work with the dado set. If you are doing this on a table saw, make sure that you properly clamp the workpiece and exercise caution.
Size
As a general rule, you should aim for one-third of the thickness of your stock. Always cut the groove slightly deeper than the tongue protraction to allow for the expansion of the wood. Use a correct size slot cutter on your router to create the groove in one pass.
Creating the tongue is a little more complex. One must cut the sides of the board to the correct length and depth to form the joint. Make sure that you clamp your wooden planks properly while machining them.
Some routers have bits that let you cut to the correct size immediately. You can also form one with the dado blade using careful measurements and cutting techniques. Make sure that the tongue is not too tight or loose in the groove. You want to achieve a snug fit for the best results.
Pros and Cons
Advantages
The primary advantage of a tongue and groove joint is its stability. Flat surfaces receive strong support because it offers three strength layers where it joins.
This type of wood joinery also provides a lot of area for adhesives. The larger the area you can apply the wood glue stronger the bond will be.
Generally, you don’t glue a tongue and groove joint to allow for seasonal movements. However, if you doing a floating floor installation or building a large board for your tabletop, gluing the joint will be necessary.
Simplicity is another benefit of the T&G joint. There are no complex calculations involved. All you need is a set of dado blades or a router table with the correct size bit. It may take a bit of time to set your table saw or router to achieve the dimensions of the tongue correctly. But once set, it is an easy task.
You don’t need to spend a lot of time assembling these joints. When the woodworking is completed correctly, anyone can put the boards together to form a flat surface.
Disadvantages
The disadvantage to consider with tongue-and-groove joints involves the design’s long-term durability. You cannot glue thin panels because the adhesives contraction would break the tongue, destabilizing the construction.
Repairs to this type of joinery are also tricky to complete. If the groove edge or tongue receives damage, the entire affected board may require a replacement. That means an extensive flat installation (such as a floor) may need resurfacing or replacement.
Final Thoughts
A tongue and groove joint can handle a significant amount of force when used correctly. That’s why it is one of the most popular design choices in modern woodworking.
